DDL615-5HBS GREY-PHILIPS SMART DDL615-5HBS GREY

Description

Philips DDL615-5HBS Smart Lock – Specifications

Design & Appearance

• • • Color: Sky grey

    • Handle: Lever handle

    • Main Material: Tempered glass, Aluminium alloy

    • Fingerprint Sensor: Semiconductor

Access Solutions

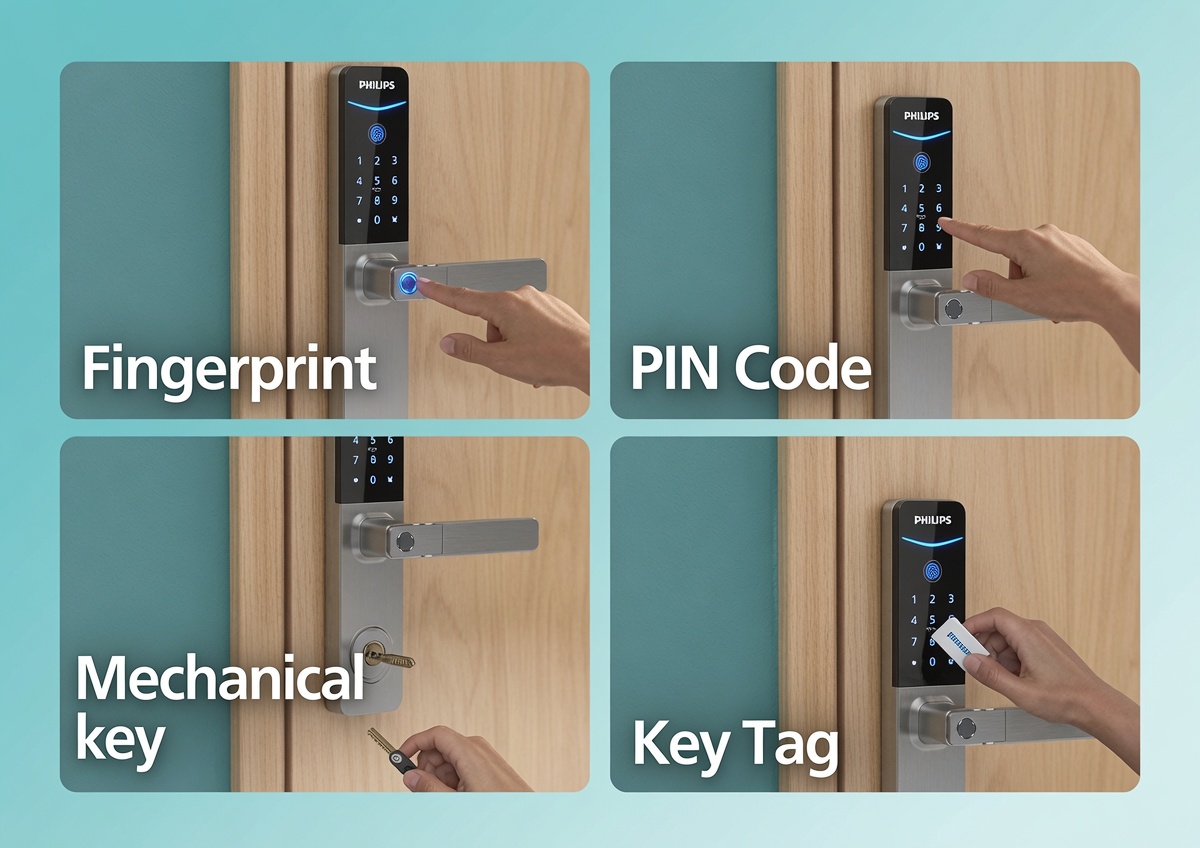

• • • Fingerprint: Yes

    • Password/PIN Code: Yes

    • Card/Key Tag: Yes

    • Mechanical Key: Yes

Lock Capacity

• • • Fingerprint: Up to 100 (incl. master fingerprint)

    • Card/Key Tag: Up to 100

    • Master PIN Code: 1

    • User PIN Codes: Up to 20 (incl. one-time codes)

    • Offline Access Control PINs: Up to 250

Power Specification

• • Power Supply: 4 × AAA alkaline batteries (expandable up to 8)

  • Battery Life: Approx. 5 months*

  • Charging Interface: Type-C

  • Emergency Power Supply: 5V power bank

  • Working Voltage: 4.5 – 6V

Easy Operation

• Voice Guide: Real human voice navigation

Smart Lock Functions

• Mortise: C-grade lock cylinder

• Locking Function: System locking & electronic deadlock

• Safety Features: Dual verification, hidden PIN code

• Alarm Functions: Tamper alert, system lock alert

Modes

• Manual mode

• System setup mode

• Dual verification mode

• General mode

Installation

• Door Thickness: 35–60 mm / 60–90 mm / other ranges*

• Door Opening Directions: Right inward, left outward, right outward, left inward

• Door Type: Wooden, copper, or security doors

Key Features

• Compact & modern design – Slim 56mm panel for a sleek, minimal look.

• Multi-access flexibility – Unlock via fingerprint, PIN, card, or mechanical key.

• Smart security modes – Dual verification and hidden PIN for enhanced safety.

• Power backup ready – Type-C charging and emergency power bank support.

• Voice navigation – Real-person guidance for simple setup and daily use.

Suitable For

• Apartments & villas – Elegant design with reliable security.

• Corporate offices – Flexible access control with offline PIN support.
